Moodlu Quarry access

We have now begun the installation of a new floating pump station at Moodlu Quarry, which includes under water infrastructure. For public safety, access to Moodlu Quarry is strictly prohibited and will be enforced. Community safety is our priority.


The Wamuran Irrigation Scheme will divert Class A recycled water from the Caboolture South Sewage Treatment Plant to farms, giving those participating in the Scheme greater certainty for crop planting and enabling them to expand their operations.

In its first stages, the Scheme will deliver about 2.6 gigalitres of recycled water per year – the equivalent of 1051 Olympic swimming pools – to a number of farming operations in the region producing raspberries, strawberries, pineapples, avocados and turf. As the population grows and the supply of recycled water increases, more will be distributed and more growers from the region will be able to access the Scheme.

The Scheme is being built by the Wamuran Irrigation Scheme Joint Venture (JV), made up of construction contractor Pensar and two local growers, Twin View Turf and Pinata Farms. The JV was awarded a contract in October 2019 to assist Unitywater to design and construct the Scheme, following an open-market tender process.

The design has been finalised and construction is progressing well. The Scheme is due to be operational in early 2024.

The Class A recycled water produced by the Scheme will go through a rigorous treatment, disinfection and testing process before being used to irrigate crops.

Unitywater is working closely with Queensland Health and the Department of Regional Development, Manufacturing and Water to ensure it complies with all state and national public health and food safety regulations as the Scheme progresses.

Print our downloadable factsheet for more information about how the Scheme will work.



Wamuran scheme benefits



Expected population increases in the Moreton Bay region will create additional loads through Unitywater’s sewage treatment plants and higher effluent volumes following treatment.

Unitywater identified a unique opportunity to treat recycled water at the Caboolture South STP to Class A standard, then supply the water to farmers who currently rely on their own dams or local creeks to irrigate their crops.

In 2016, Unitywater commissioned a survey to gauge interest from agribusinesses in the Wamuran area about the use of recycled water on food and turf crops, which was met with a lot of interest. A number of foundation customers were identified using a weighted multi-criteria process that included their location and projected recycled water demand. We also considered a diverse range of crops, with an even mix of seasonal and day/night water requirements, so the Scheme could handle peak demands. Crops in the first stage of the Scheme include raspberries, strawberries, pineapples, avocados and turf.

Benefits from the Scheme include providing a high quality, secure water supply for growers and reducing effluent and nutrient volumes being discharged into the Caboolture River. As more water becomes available from the Caboolture South STP, the Scheme will expand to service more local growers.



Wastewater from the Caboolture South STP will be treated in a disinfection facility before it is transferred via a 10km pipeline to Moodlu Quarry, where it will pass through a water quality management facility.

Moodlu Quarry will be used for mid-stream balancing storage to ensure that surplus water is held to meet peak seasonal crop demand.

Moodlu Quarry is critical to the success of the Scheme and from late February 2022, will become an active construction zone with strict site access protocols in place.

In Stage 1, water will be delivered to farms from the Moodlu Quarry pump station through another 12km pipeline to safely irrigate turf and food crops.

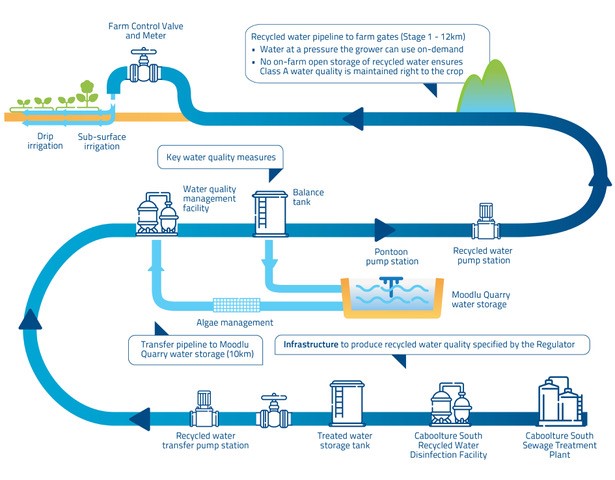

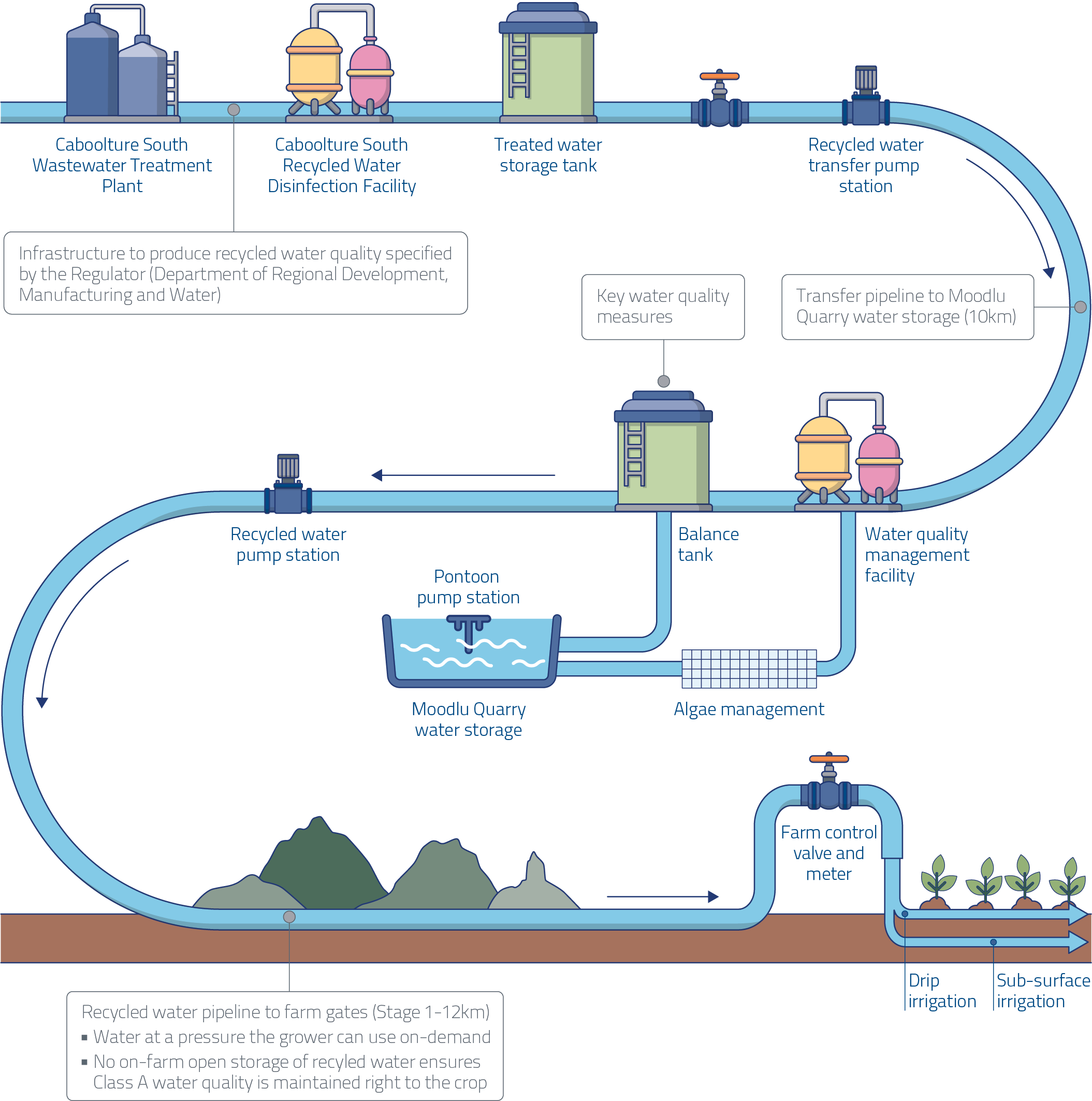

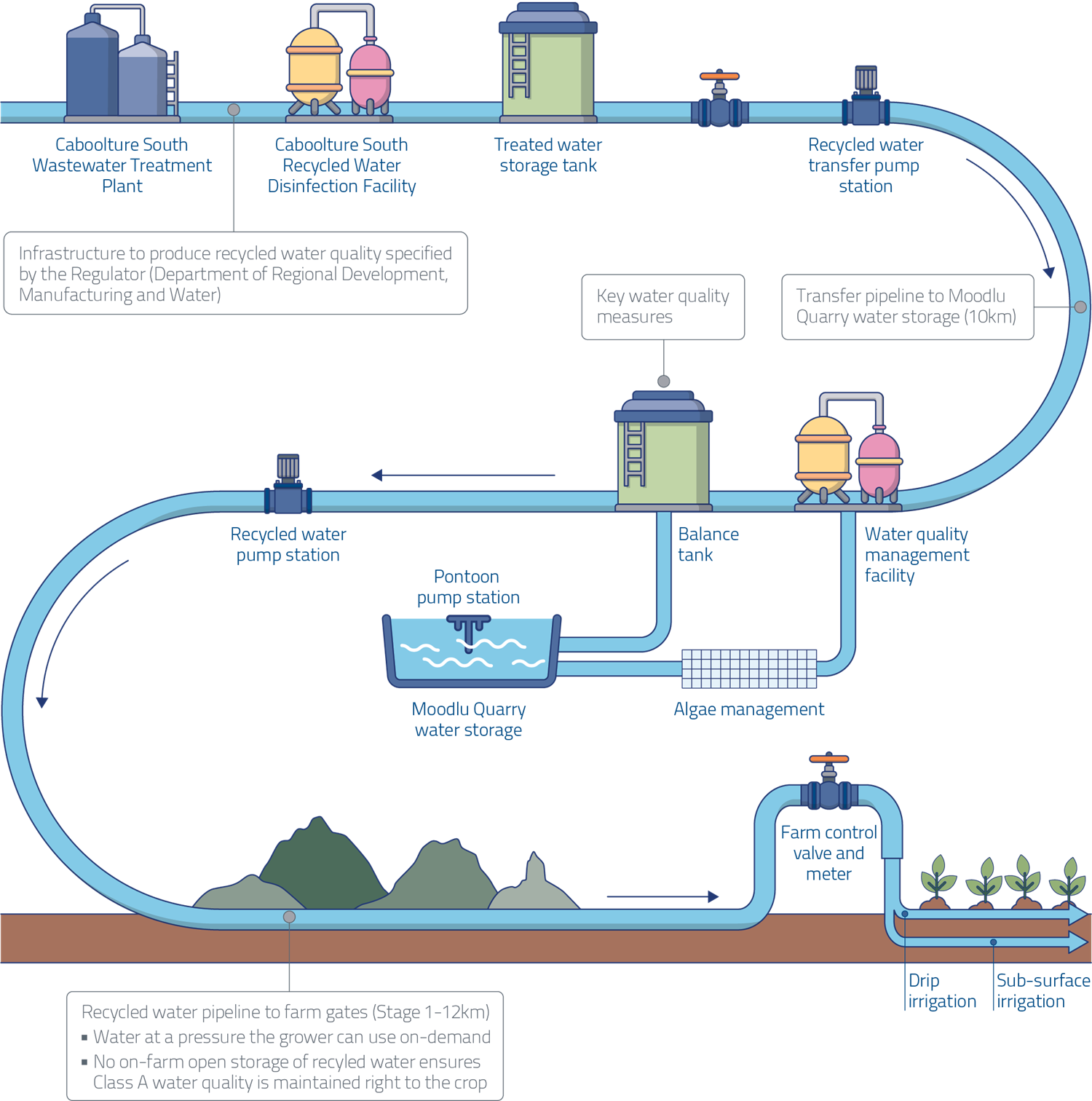

How the Wamuran Irrigation Scheme will operate:



WIS process infographic

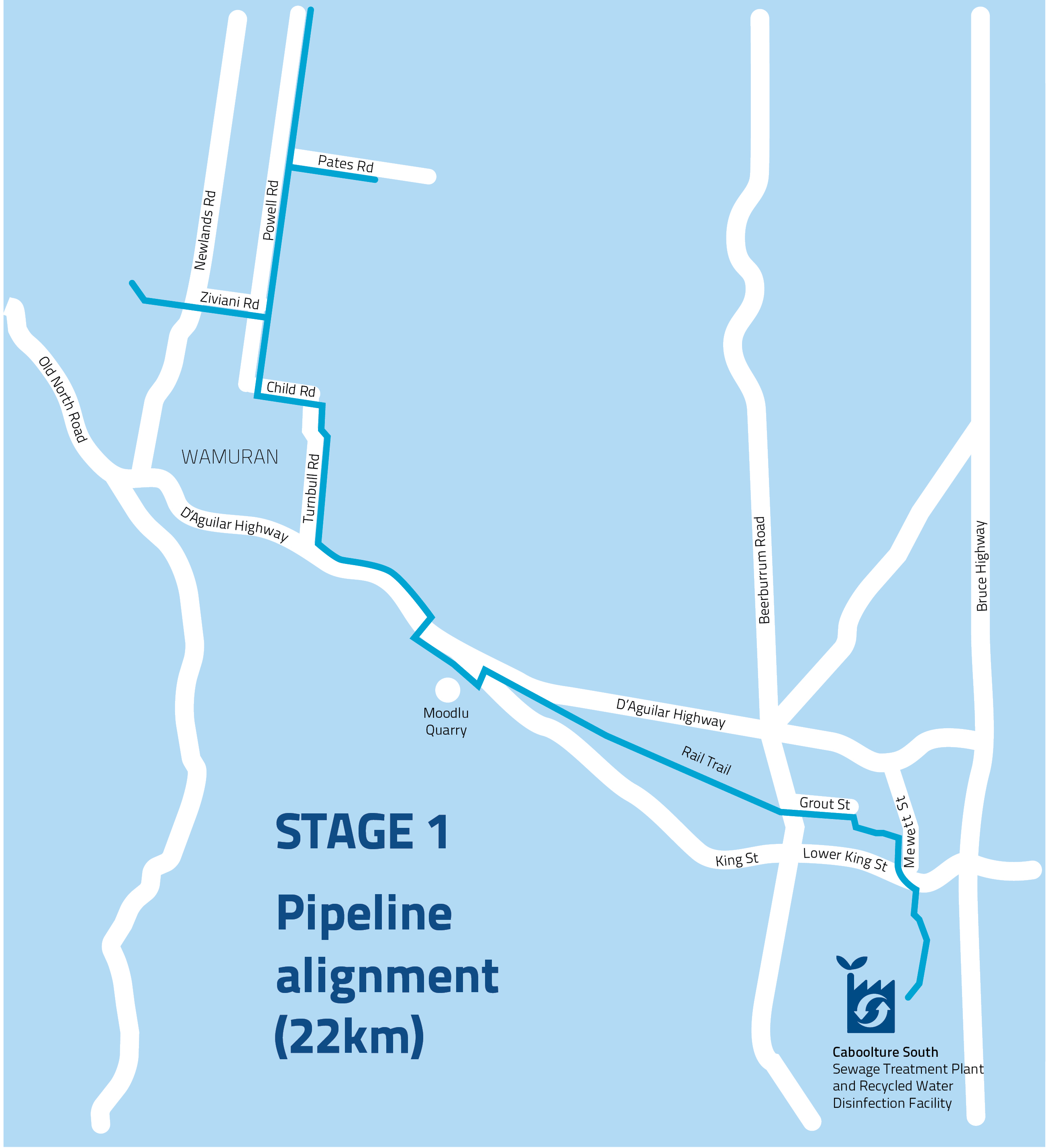

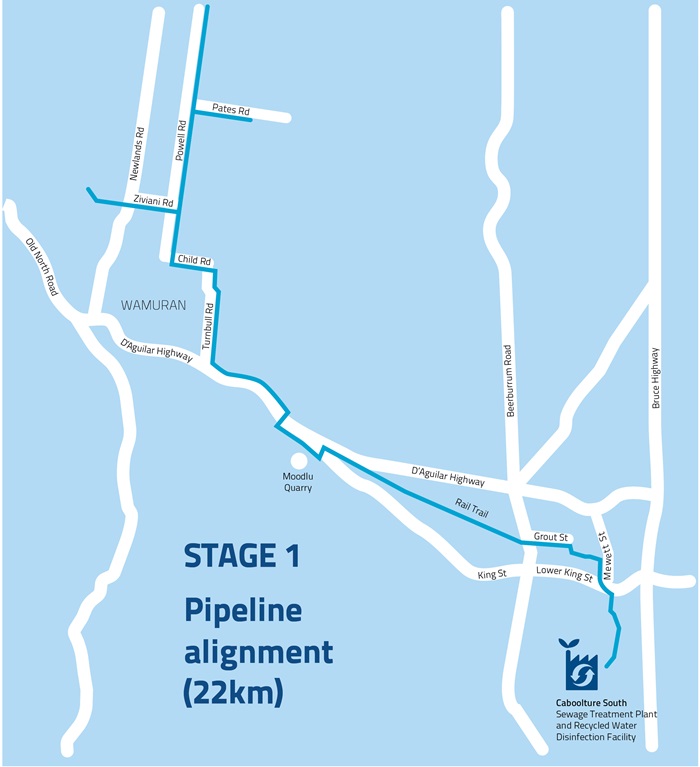

Wamuran Irrigation Scheme - Stage 1


Phase 1: Design and feasibility assessment

March 2020 – December 2021

Investigations undertaken in this phase included the way in which we treat the water, the design of the pipeline and associated infrastructure and how the recycled water could be used by farms for irrigation.

Early design and feasibility investigations are complete and the scheme was approved by the Unitywater Board in December 2021.

Phase 2: Construction
Early 2022 – Late 2023

The Wamuran Irrigation Scheme Joint Venture is now building the Scheme’s infrastructure on behalf of Unitywater. This infrastructure includes water treatment facilities, transfer and network pipelines, a storage tank, pump stations, valves and meters.

Phase 3: Verification and validation
Early 2024

Following scheme construction, verify and validate reliability and quality of the recycled water prior to use on food crops.

Phase 4: Operate and maintain
Early-Mid 2024 onwards

After the infrastructure is commissioned, Unitywater will operate and maintain the Scheme. This will include distributing the recycled water from the treatment plant to end users, undertaking monitoring for compliance, regulatory reporting and ongoing liaison with farmers in the region to manage supply to both existing and new scheme users.

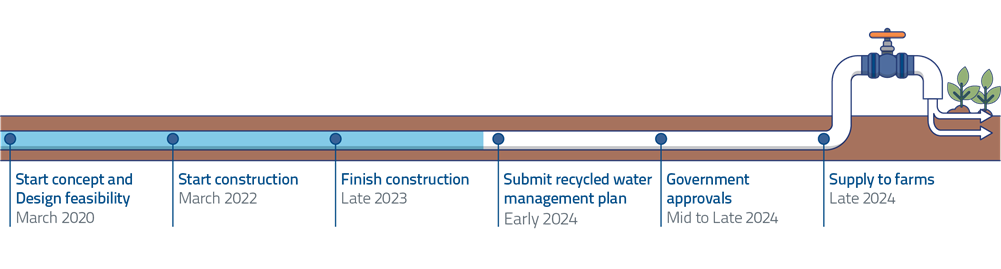

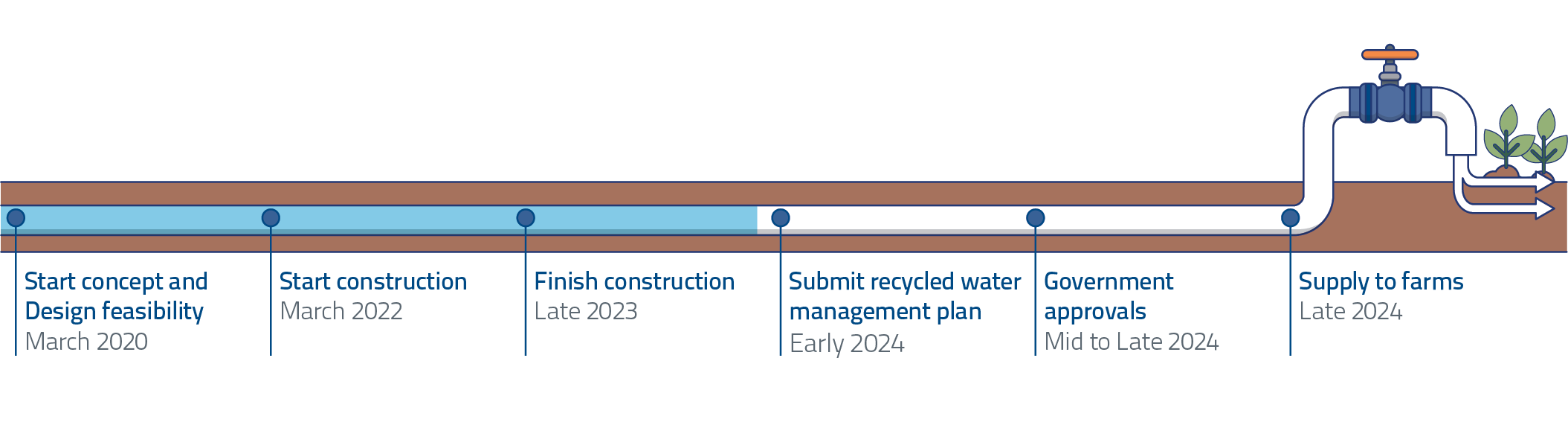

Wamuran Irrigation Scheme timeline diagram





Wamuran timeline

Mar 20-Dec 21
Design and feasibility assessment

Assessing scheme efficiency and designing for current and future demand targets

Early 22 - late 23
Construction phase

Construction is now in progress

Early 24
Verification and validation

Following scheme construction, verify and validate reliability and quality of the recycled water prior to use on food crops.

Early-mid 24 onwards
Operation and maintenance
Scheme operation and maintenance commences for foundation participants and assessed for future expansion
